Packaging Height Reduction Automation - BoxSizer®
Request a quote

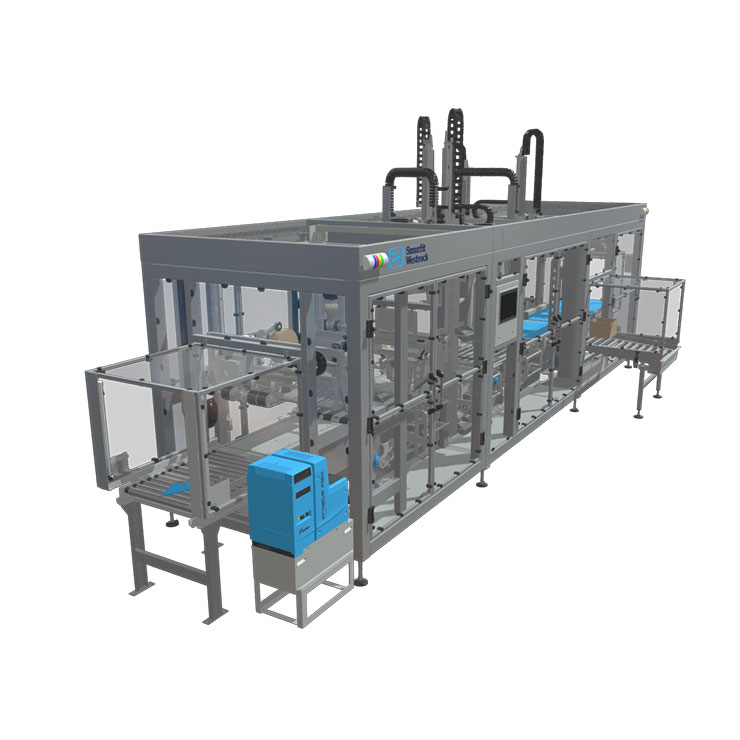

BoxSizer® is an award-winning right-size box maker designed to vertically size multiple box footprints on demand without stopping for changeovers. This innovative technology improves productivity, reduces operating costs and maximizes truck space, making it ideal for various markets and industries.
How BoxSizer® works
- Arrival: Prepacked multiple footprint boxes arrive at infeed.
- Measures: Determines outside dimensions and internal void fill.
- Cuts & crimps: Completes sizing at a pre-determined safe height above the contents.
- Folds & seals: Reduces empty void and box height.
- Tapes/glues and discharges: Taping, straps and lidding solutions are available.
Explore Our BoxSizer® Models

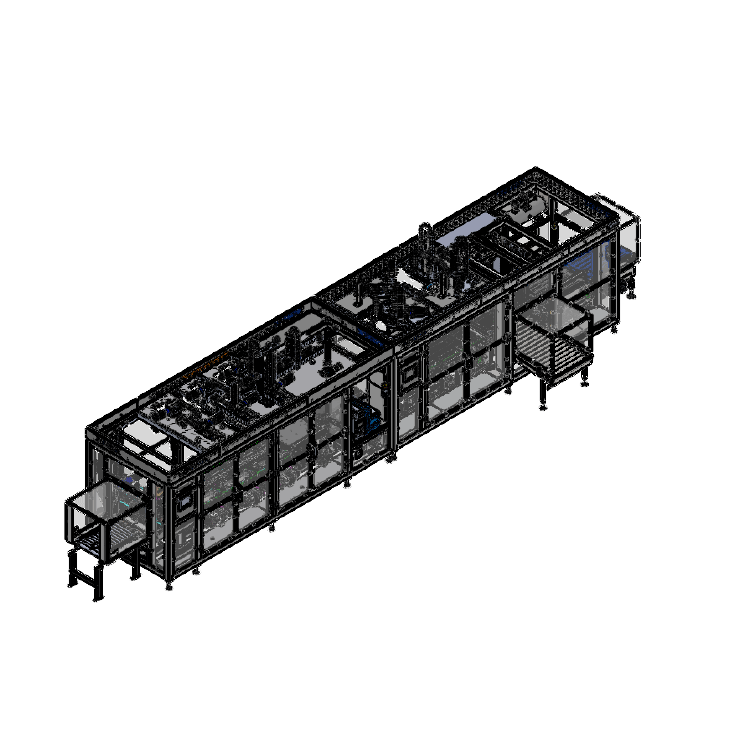

BXR600FGL BoxSizer® with Lidder
The BXR600FGL rapidly processes up to 10 cases per minute*, automatically measuring and closing FEFCO 0200 (HSC) cases with a glued lid for those with contents too tall for standard flap closure.
BXR600FG BoxSizer®
The BXR600FG efficiently processes FEFCO 0200 (HSC) up to 10 cases per minute*, automatically measuring, cutting, creasing, folding, and taping them closed. It minimizes box height to fit the contents providing volumetric savings.

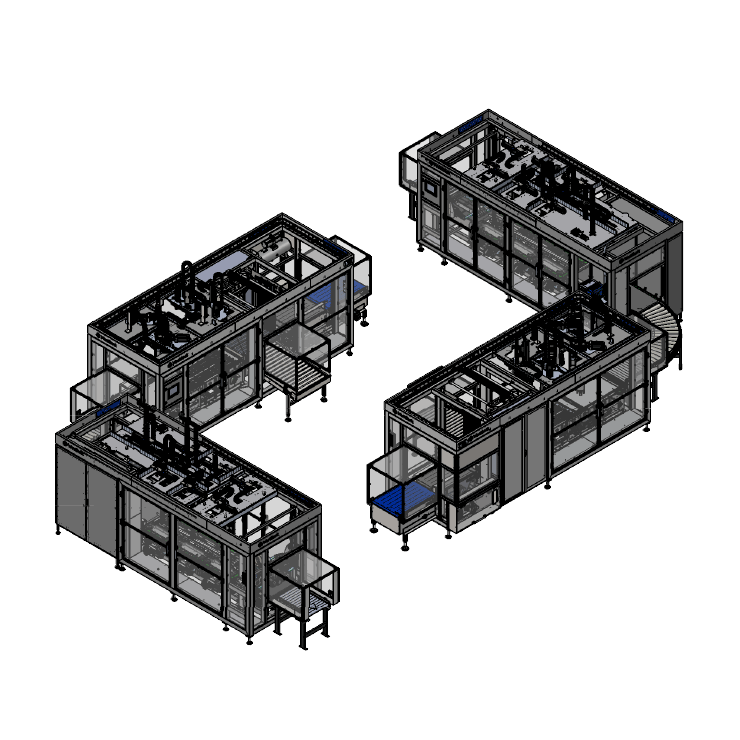

BXR600 BoxSizer® Cut & Crimp
The BXR600, a Cut & Crimp Module for FEFCO 0200 (HSC) cases, processes up to 10 cases per minute*. It measures, cuts, and creases each case to minimize height based on contents, offering volumetric savings. Integrated with a closer module, its modular design enhances layout flexibility and permits additional steps between cutting and closing.
BXR600C BoxSizer® Close
The BXR600C Closer is a case closer for FEFCO 0200 (HSC) cases, capable of processing up to 10 cases per minute*. After cases are measured, cut, and crimped by the BXR600 Cut & Crimp Module, the BXR600C folds, glues and tapes to close them to the minimum height necessary for the contents. Its modular design enables flexible layout options and integration of additional processing steps between cutting and closing.
BXR600 BoxSizer® & BXR600C BoxSizer® Closer
The BXR600+BXR600C BoxSizer, designed for FEFCO 0200 (HSC) cases, can process up to 10 cases per minute* with its automated measure, cut, and crimp system, followed by folding, gluing and taping, ensuring a minimal closed case height for volumetric efficiency. Its modular design enhances layout flexibility and process integration.
