Palletizers
Request a quote
Our user-friendly, reliable and efficient robotic palletizers can be easily integrated into your end-of-line systems to help you reduce labor costs, improve pallet performance and nimbly adapt to changing order demands. With programmable patterns and configurations, our robotic palletizers enable quick and accurate handling and stacking of a variety of packages, while reducing the need for human intervention.
Benefits of palletizers:
Labor Efficiency
Reduce labor costs associated with manual palletizing and reallocate valuable labor resources to more value-added tasks.
Pallet Stability
Improve pallet performance with accurate and repeatable robotic placement and programmable patterns and configurations.
Small Footprint Machinery
Optimize space utilization with a compact platform footprint.
Optimized Maintenance
Decrease maintenance requirements with fewer parts to repair, replace and maintain versus traditional palletizing automation solutions.
Repetitive Task Automation
Prevent human injuries and fatigue associated with manual palletizing among workers.
Flexibility
Adapt to changing demands, such as seasonal peaks, new product launches, increased orders or customer preferences.
Seamless Integration
Integrate easily into existing lines and upstream automation.
Explore our range of palletizers

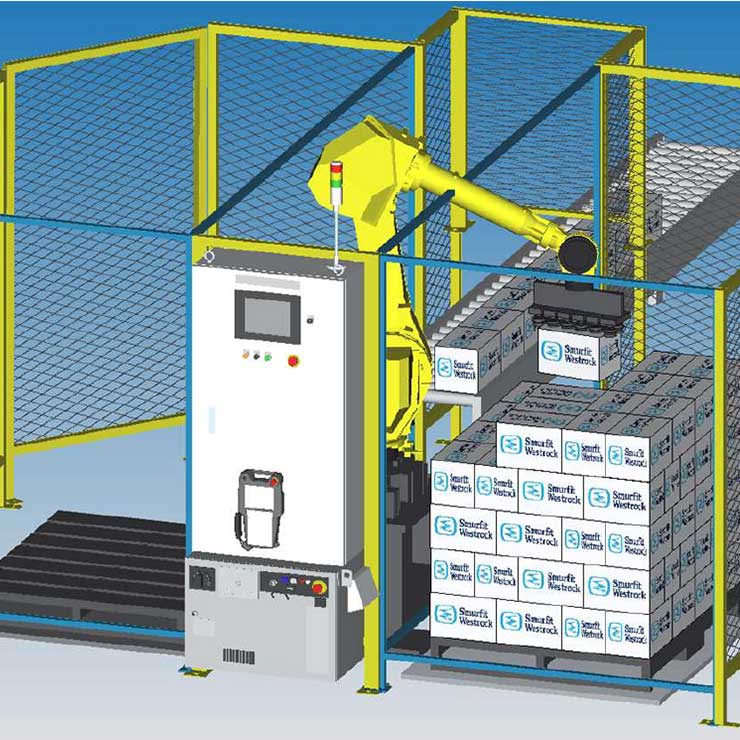

RP-F floor series
Our RP-F model provides a simple and cost-effective way to automate palletizing on a single line. This palletizing robot alternates between two floor-mounted pallet build stations, allowing operators to exchange a full load with an empty pallet while the robot continues to work automatically on the opposite side, providing independent safety zones. If needed, the operator may place a base sheet during the pallet exchange process, and tier sheets can be placed by the robot.
Ideal Applications
- Case/package that can be top picked with vacuum
- Rates up to 12 cases per minute
- Pallet heights up to 72”
- Pallet handling is performed without forklifts
Configured Components
- 4/5 Axis Palletizing Robot (FANUC M-410 series or KUKA KR240PA range)
- Robot end of arm tool – single case vacuum
- Case infeed conveyor with metering and alignment
- Two pallet floor fixtures
- Dual zone safety enclosure with light curtains
- Intuitive PLC & color touchscreen HMI

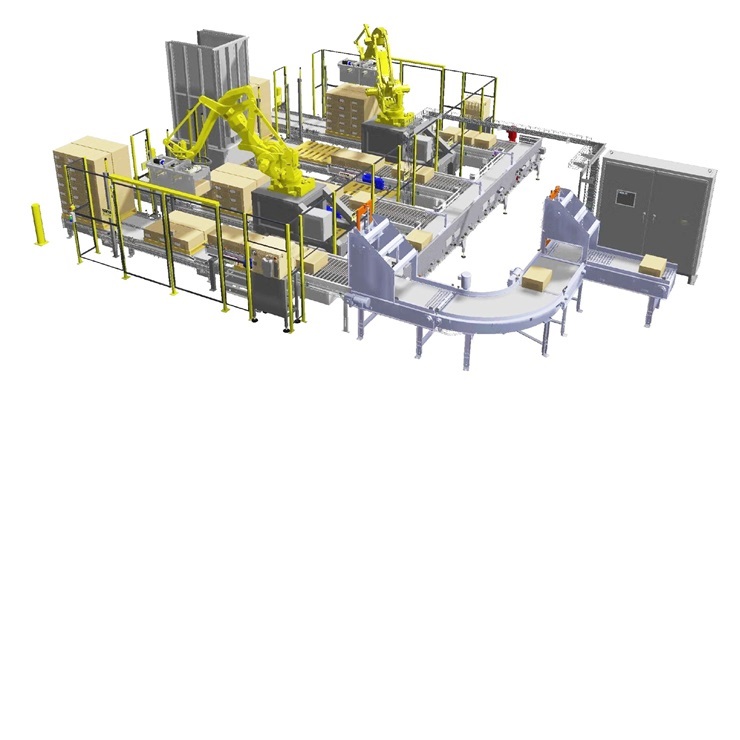

Robotic Palletizer RP-M multi-line series
The RP-M multi-line series palletizer provides a customizable, fully automatic solution that includes pallet conveyors. With the ability to handle multiple slow- to-medium speed production lines, the RP-M helps reduce costs and footprint associated with end-of-line palletizing. Highly configurable depending on available space, production speed, type of product and pallet patterns, this solution can be configured with multiple robots, pallet handling automation, stretch wrapping and labeling.
Ideal Applications
- Combined line rates up to 20+ packages/minute
- Pallet heights up to 100”
- Automatic pallet handling
Typical Components
- 4/5 Axis Palletizing Robot (FANUC M-410 series or KUKA KR240PA range)
- Full range of grippers for case, tray or other packages
- Product infeed conveyors with metering and alignment
- Automatic pallet dispenser
- Automatic conveyor system
- Intuitive PLC & color touchscreen HMI

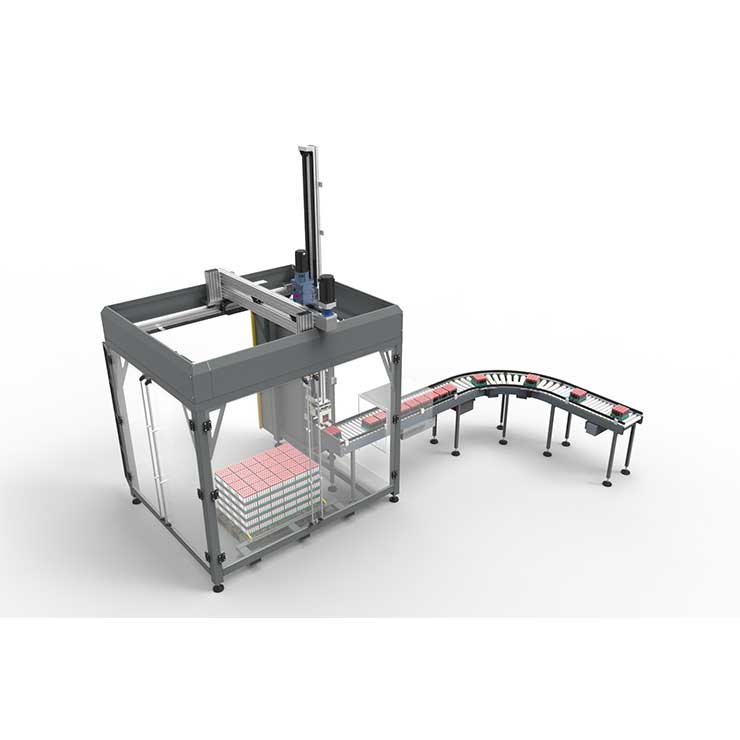

Gantry Palletizer GP-F floor series
The GP-F floor series loads to either one or two floor-mounted pallet build stations, allowing operators to exchange a full load with an empty pallet while the robot continues to work automatically on the opposite side. If needed, the operator may place a base sheet during the pallet exchange process, and tier sheets can be placed by the robotic gantry.
Ideal Applications
- Case/package that can be top picked with vacuum or side gripped/clamped
- Rates up to 10 picks per minute
- Pallet heights up to 72”
- Pallet handling is performed without forklifts
Configured Components
- X-Y-Z gantry system with servo-driven controls
- Case infeed conveyor with metering and alignment
- Intuitive PLC & color touchscreen HMI with automatic pallet generation tool

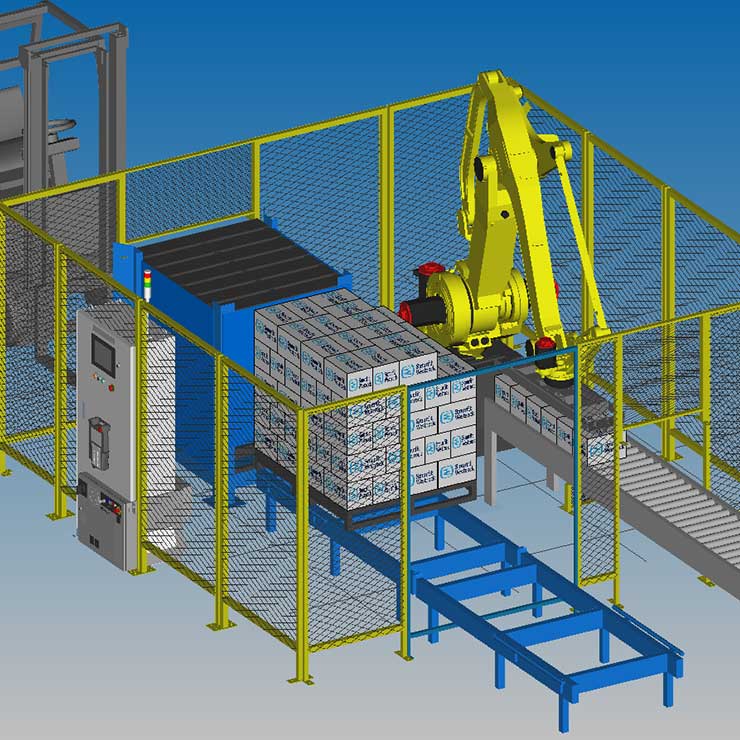

Robotic Palletizer RP-C conveyor series
The RP-C conveyor series palletizer machine provides a customizable, fully automatic single line solution that includes pallet conveyors, helping to free operators to perform other valuable tasks. This model also allows the addition of other operations like stretch wrapping and labeling.
Ideal Applications
- Rates up to 20+ packages/minute
- Pallet heights up to 100”
- Automatic pallet handling
Configured Components
- 4/5 Axis Palletizing Robot (FANUC M-410 series or KUKA KR240PA range)
- Full range of grippers for case, tray or other packages
- Product infeed conveyor with metering and alignment
- Automatic pallet dispenser
- Automatic conveyor system
- Intuitive PLC and color touchscreen HMI

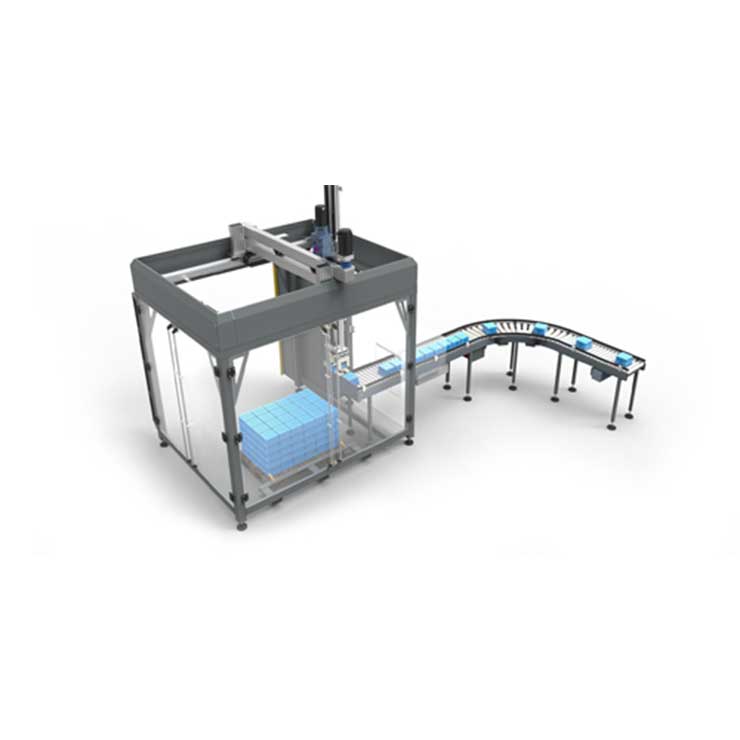

Gantry Palletizer GP-C conveyor series
The GP-C conveyor series provides a customizable, fully automatic solution that includes pallet conveyors, helping to free operators to perform other valuable tasks. This model also allows the addition of other operations like stretch wrapping and labeling.
Ideal Applications
- Rates up to 20+ packages/minute
- Pallet heights up to 100”
- Automatic pallet handling
Configured Components
- X-Y-Z gantry system with servo-driven controls
- Full range of grippers for case, tray or other packages
- Product infeed conveyor with metering and alignment
- Automatic pallet dispenser
- Automatic conveyor system
- Intuitive PLC & color touchscreen HMI with automatic pallet generation tool
