Wrap Around Case Packers
Request a quote
Our RAM wrap around case packers efficiently collect products from the production line, securely wrap them into loaded blanks, and seal the cases or trays to create compact packages. These packages offer excellent stacking strength, minimize product movement during transportation, and help reduce material costs.
We provide semi- and fully-automatic systems that can be tailored to your operating needs, accommodating packaging formats such as RSC, FOL, POL or tray designs, and providing flexibility for small items like cans, bottles and cartons, as well as larger, challenging products.
- Enhance packaging stability and stackability with tightly formed, durable packages that protect products during transport.
- Improve material efficiency with flat scored and slotted corrugated blanks and precise wrap-around case forming, which limits excess waste.
- Streamline labor needs through automation that reduces manual handling.
- Boost operational flexibility by adapting to various case formats and product types.
Our Proprietary Wrap Around Case Packers

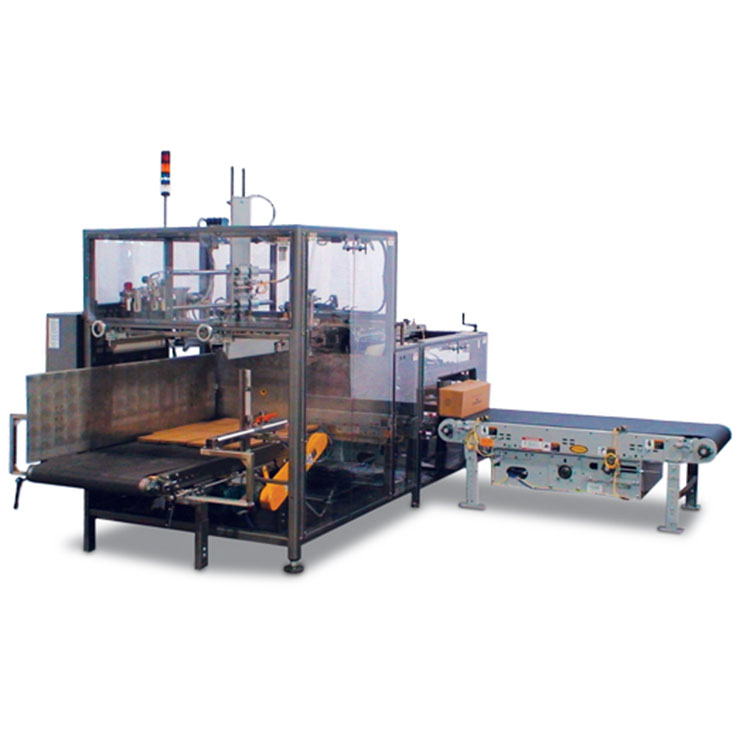

RAM350 Wrap Around Case Packer
The RAM350 Wrap around Case Packer delivers precision and efficiency while packing up to 15 cases per minute. Engineered for durability and flexibility, it is designed to optimize your packaging process while minimizing downtime. This machine accommodates Regular Slotted Containers (RSC), Full Overlap Slotted Containers (FOL), and Partial Overlap Boxes (POL), with support for both inside and outside glue laps.
Case Dimensions
- Minimum: 101.6mm x 101.6mm x 152.4mm (4.0" x 4.0" x 6.0")
- Maximum: 355.6mm x 254.0mm x 711.2mm (14.0" x 10.0" x 28.0")
FOL Dimensions
- Minimum: 101.6mm x 101.6mm x 279.4mm (4.0" x 4.0" x 11.0")
- Maximum: 355.6mm x 254.0mm x 508.0mm (14.0" x 10.0" x 20.0")
Equipment dimensions
- 209.00” x 124.00” x 142.00” (5.31m x 3.15m x 3.61m)
Voltage
- 220/230/240 Volts, 3 Phase, 60 Hz (WYE Configuration)
RAM398 Wrap Around Case Packer
The RAM398 Wrap Around Case Packer is expertly crafted to deliver both precision and efficiency, achieving packing speeds of up to 25 cases per minute. Engineered for durability and versatility, it streamlines your packaging operations while minimizing downtime. This machine accommodates Regular Slotted Containers (RSC), Full Overlap Slotted Containers (FOL), and Partial Overlap Boxes (POL), with support for both inside and outside glue laps
Case Dimensions
- Minimum: 101.6mm x 101.6mm x 152.4mm (4.0" x 4.0" x 6.0")
- Maximum: 355.6mm x 254.0mm x 711.2mm (14.0" x 10.0" x 28.0")
FOL Dimensions
- Minimum: 101.6mm x 101.6mm x 279.4mm (4.0" x 4.0" x 11.0")
- Maximum: 355.6mm x 254.0mm x 508.0mm (14.0" x 10.0" x 20.0")
Equipment dimensions
- 5.31m x 3.15m x 3.61m (209.00” x 124.00” x 142.00”)
Voltage
- 220/230/240 Volts, 3 Phase, 60 Hz (WYE Configuration)

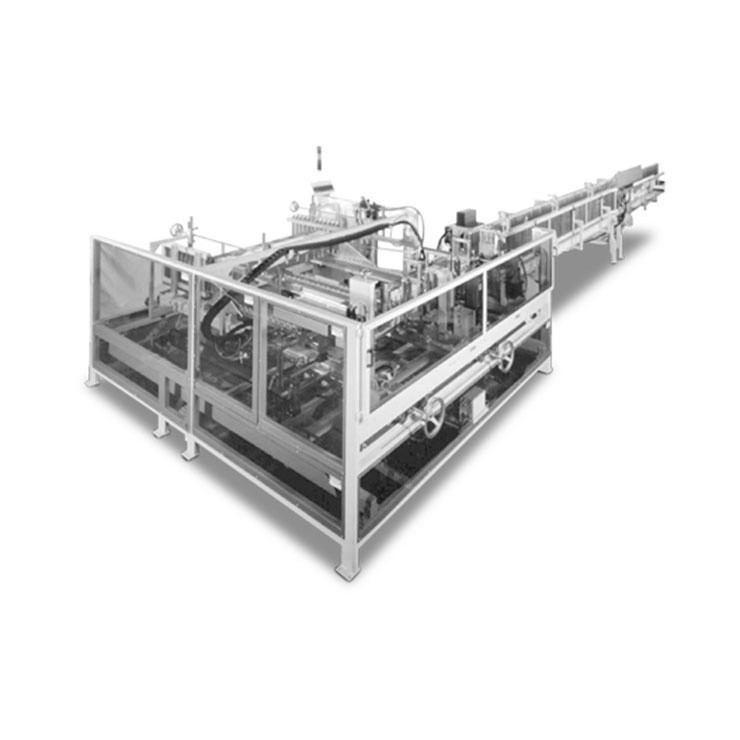

RAM450 Wrap Around Case Packer
The RAM398 Wrap Around Case Packer is expertly crafted to deliver both precision and efficiency, achieving packing speeds of up to 12 cases per minute. This machine supports RSC, FOL, and POL formats as standard, with optional features including five-panel folders, inside glue lap or full fifth panel, and end flap folding (minors to major, then bottom major)
Cases per minute (CPM)
- Up to 12 CPM (depending upon application)
Voltage
- 220/230/240 Volts, 3 Phase, 60 Hz (WYE Configuration)
