Fully-Automatic Bag-in-Box Filling Machines
Request a quote
The ProFill range of fully-automatic filling machines offers outstanding versatility for Bag-in-Box filling to meet the needs of various liquids and your production requirements.
We offer three models versions providing unmatched versatility for the Bag-in-Box filling process.
- Single Head: Ideal for flexible or medium-scale production, this model ensures exceptional filling precision.
- Double Head: Engineered to deliver enhanced performance, this model is tailored to support the evolving demands of your business.
- Triple Head: Ultimate solution for maximum production, combining speed and efficiency.
Each model is available in both pneumatic and electric versions, tailored to meet diverse operational needs:
- Pneumatic: A durable and reliable option powered by compressed air, ensuring consistent performance in demanding environments.
- Electric: A state-of-the-art solution that offers full automation and superior efficiency, delivering optimal performance with cutting-edge technology.
Each model and version are meticulously engineered to deliver efficiency, precision, and exceptional quality.
Our Range Of Fully-Automatic Bag-in-Box Filling Machines
Swipe left to see more options

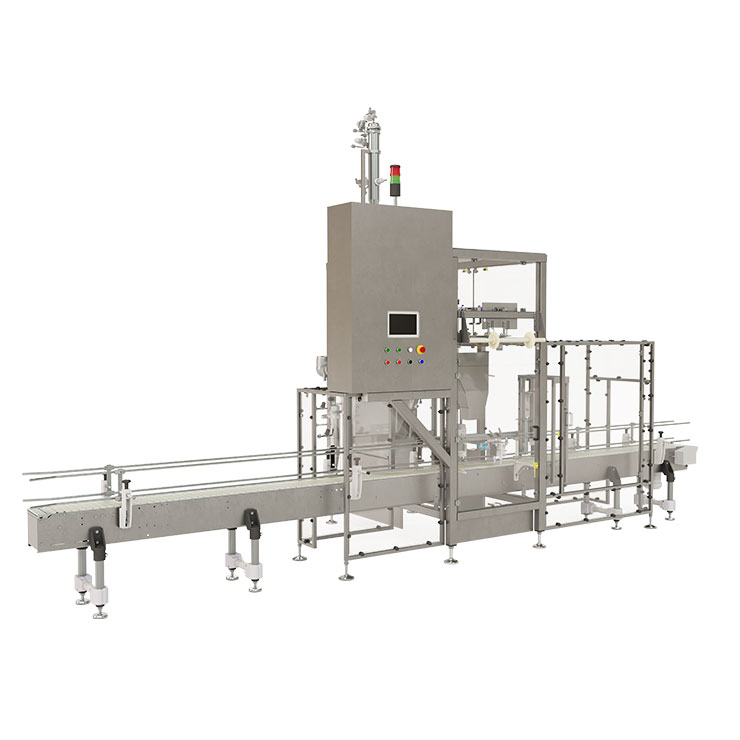

ProFill S (Single Head)
The ProFill S is a fully automated, single-head filling machine, perfectly suited for small-scale production volumes.
We offer two versions of the ProFill S:
- ProFill 15 S (Pneumatic Version): Delivers a filling speed of 15 bags per minute.
- ProFill 17e S (Electric Version): Provides an enhanced filling speed of 17 bags per minute.
Bag & Sizes
- Suitable for bags from 1.5 L to 20 L
Weight
- 900 to 1000 kg (depending on options)
Box Size
- Minimum - H:220 mm / L:123 mm / W:80 mm
- Maximum - H:410 mm / L:255 mm / W:232 mm
Power & Pressure
- Power: 400V/50hz 3P+N+
- Pressure: 6 to 7 bars

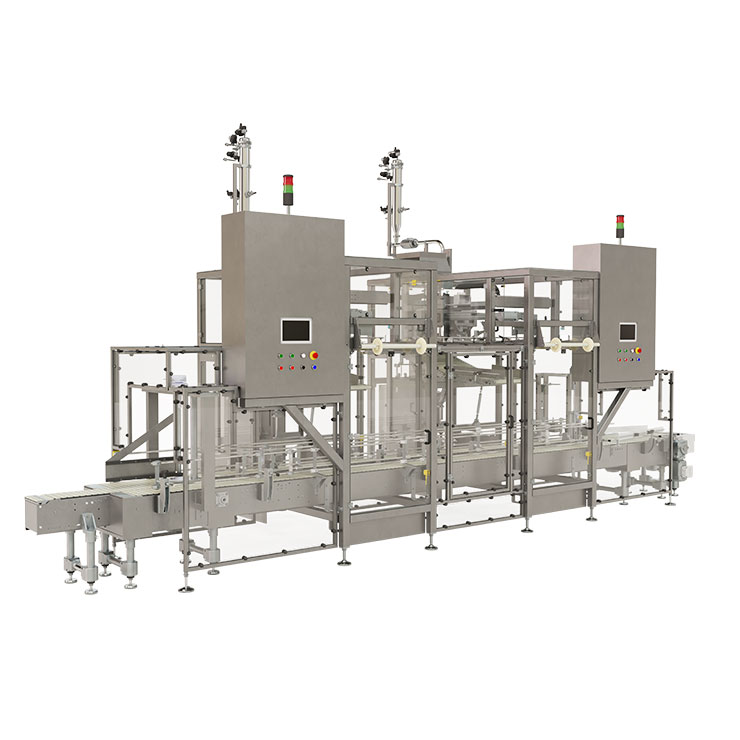

ProFill D (Double Head)
The ProFill D is a fully automated, double-head filling machine designed to boost output and efficiently meet the growing demands of your business.
We offer two versions of the ProFill D:
- ProFill 15 D (Pneumatic Version): Delivers a filling speed of 30 bags per minute.
- ProFill 17e D (Electric Version): Provides an enhanced filling speed of 34 bags per minute.
Bag & Sizes
- Suitable for bags from 1.5 L to 20 L
Weight
- 900 to 1000 kg (depending on options)
Box Size
- Minimum - H:220 mm / L:123 mm / W:80 mm
- Maximum - H:410 mm / L:255 mm / W:232 mm
Power & Pressure
- Power: 400V/50hz 3P+N+
- Pressure: 6 to 7 bars

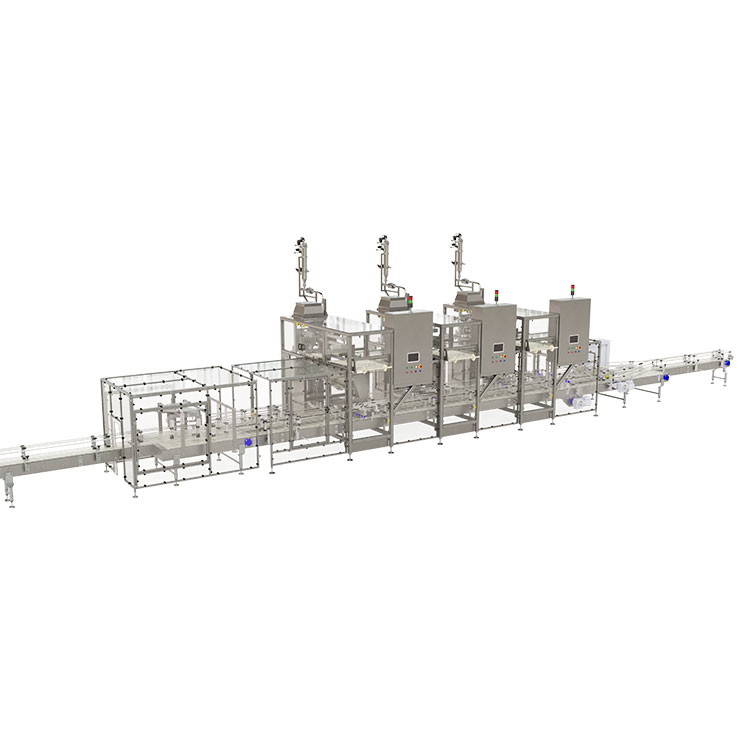

ProFill T (Triple Head)
The ProFill T is a fully automated, triple-head filling machine, engineered for high-speed performance and ideal for industrial-scale production capacities.
We offer two versions of the ProFill T:
- ProFill 15 T (Pneumatic Version): Delivers a filling speed of 45 bags per minute.
- ProFill 17e T (Electric Version): Provides an enhanced filling speed of 51 bags per minute.
Bag & Sizes
- Suitable for bags from 1.5 L to 20 L
Weight
- 900 to 1000 kg (depending on options)
Box Size
- Minimum - H:220 mm / L:123 mm / W:80 mm
- Maximum - H:410 mm / L:255 mm / W:232 mm
Power & Pressure
- Power: 400V/50hz 3P+N+
- Pressure: 6 to 7 bars
